Norco has just announced the electrified version of its Sight line of all-mountain bikes — named the Norco Sight VLT. The new e-MTB is equipped with a carbon frame, Shimano Steps motor, rolls on 27.5” wheels and is suspended on 160 mm and 150 mm travel at the front and rear respectively. Read on for all the details about the new Norco Sight VLT.

Best of Test: Die besten Bikes 2018
eMTB-News.de Wandkalender 2019: 13 überragende Fotos aus der Saison – jetzt bestellen!
Factory visit: Fazua E-Bike motors
Hausbesuch: Fazua E-Bike Antriebssysteme
Eine Million Mitglieder in Deutschland: Strava weiter auf Expansionskurs
Shimano SH-MW701-Winterschuh im Test: Wasserdichter Klickschuh für kalte Tage
40 Images »

Norco Sight VLT: Specs and prices

The Norco Sight VLT is claimed to have the same ride characteristics as its unpowered forebear
# The Norco Sight VLT is claimed to have the same ride characteristics as its unpowered forebear

The new Norco Sight VLT is built up around a svelte carbon frame and integrated battery. It’s designed to handle just like its unpowered cousin, the Norco Sight. Suitable for its all-mountain intentions, the 27.5” wheeled bike has a modern and descent focused geometry. Up front there’s 160 mm of travel, matched with 150 mm at the rear. The new e-MTB will be available in sizes S, M and L. The Shimano Steps E8000 motor will be powered by an integrated 630 Wh or 500 Wh battery depending on the spec.

  • Frame: Carbon
  • Travel: 160 mm (front) / 150 mm (rear)
  • Wheel size: 27.5”
  • Intended use: All mountain
  • Motor: Shimano Steps E8000/E7000
  • Sizes: S / M / L
  • www.norco.com

Norco Sight VLT 1: 7.499 €
Norco Sight VLT 2: 5.999 €
Norco Sight VLT 3: 4.999 €

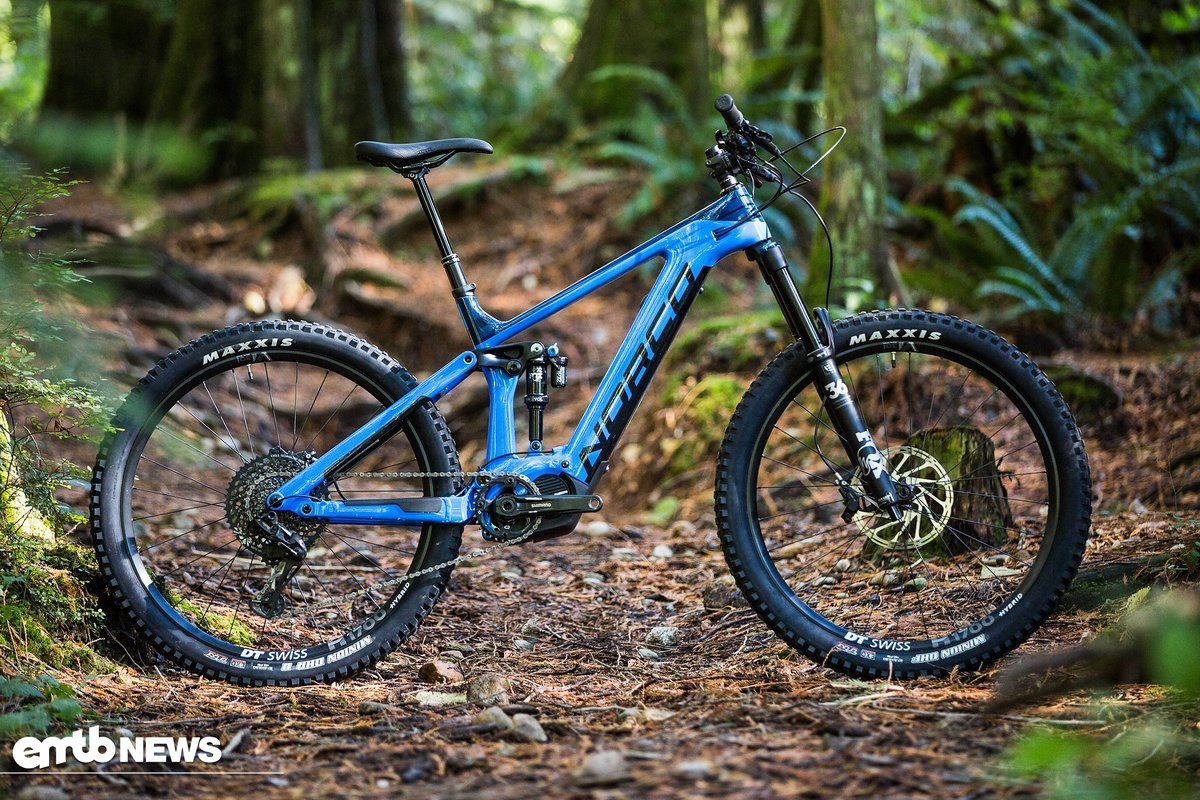

Norco Sight VLT 1
# Norco Sight VLT 1 - Motor: Shimano Steps E8000 | Battery capacity: 630 Wh | Travel front/rear: 160/150 mm | Price: 7.499 €

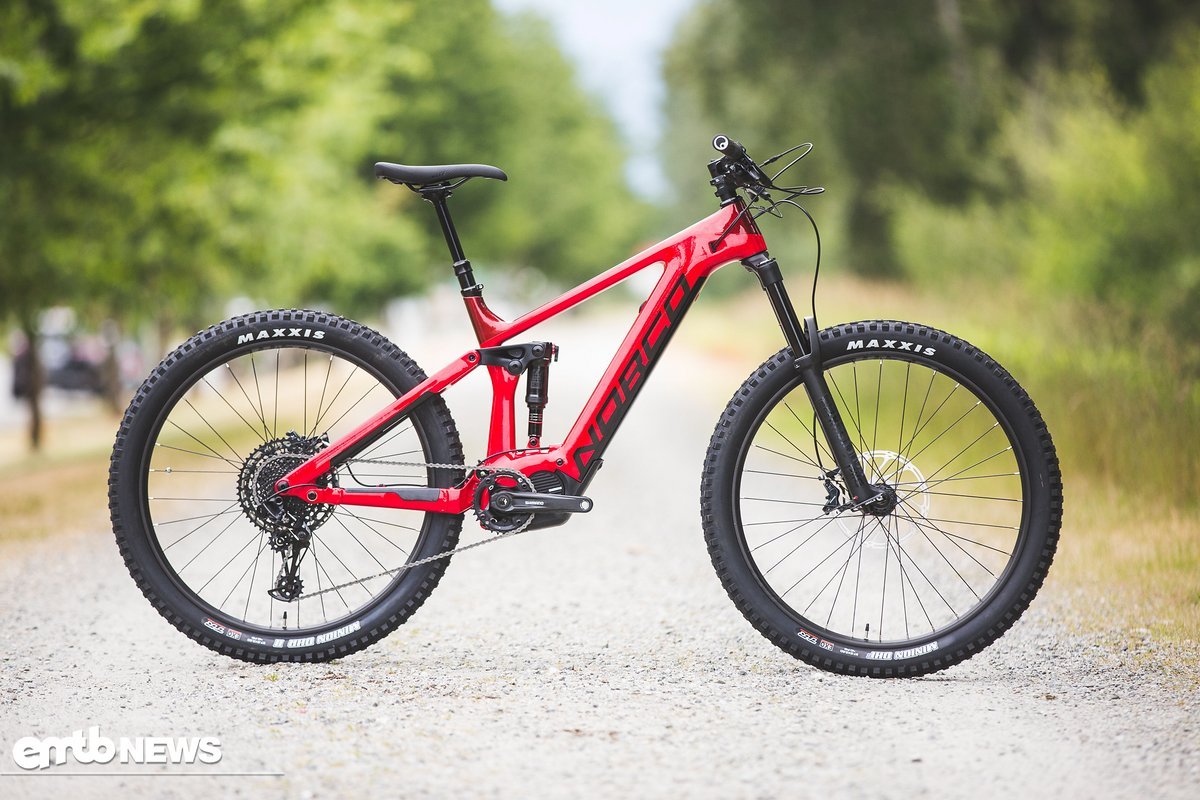

Norco Sight VLT 2
# Norco Sight VLT 2 - Motor: Shimano Steps E8000 | Battery capacity: 630 Wh | Travel front/rear: 160/150 mm | Price: 5.999 €

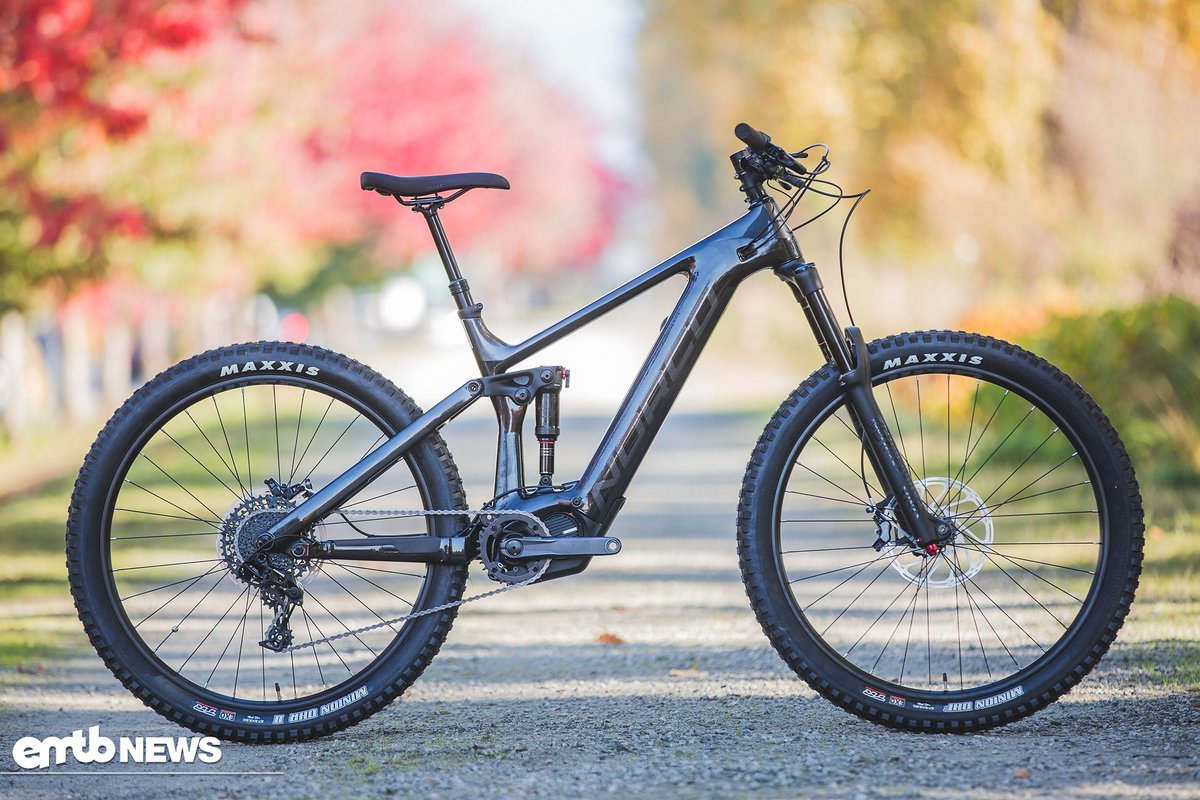

Norco Sight VLT 3
# Norco Sight VLT 3 - Motor: Shimano Steps E7000 | Battery capacity: 500 Wh | Travel front/rear: 160/150 mm | Price: 4.999 €

Geometry

The geometry of the new e-bike is based around that of the proven Sight platform. The head angle is 66° and the seat angle sits at 75°, which should make for a comfortable riding position. The 1218 mm wheelbase (Size L) and the 345 mm bottom bracket height should provide a stable and planted ride. The reach measures in at 470 mm and the stack at 617 mm. The chainstays are on the shorter side with a length of 440 mm.

SizeSML
Seat Tube Length405 mm435 mm470 mm
Head Tube Angle:66°66°66°
Seat Tube Angle:75°75°75°
Top Tube Length570 mm603 mm635 mm
Head Tube Length100 mm110 mm120 mm
Bottom Bracket Rise/Drop:15 mm15 mm15 mm
Bottom Bracket Height:345 mm345 mm345 mm
Wheel base1150 mm1184 mm1218 mm
Reach410 mm 440 mm 470 mm
Stack598 mm607 mm617 mm
Chainstay Length440 mm440 mm440 mm

Components

The components have been selected...
# The components have been selected...
... so that you can ride hard
# ... so that you can ride hard

The Norco Sight VLT is available in three variations with prices ranging from $6,499 CAD to $9,299 CAD. The top of the range model comes with Fox Performance suspension components, while the other options spec RockShox items. The drivetrain and brakes are provided by SRAM and the high-end build rolls DT Swiss H1700 Spline 30 wheels while the more affordable options use WTB ST i29 TCS 2.0 rims laced to Novatec hubs. The VLT1 and 2 are both powered by a Shimano Steps E8000 motor and the Norco Sight VLT 3 uses a Shimano Steps E7000 system instead.

 Sight VLT 1Sight VLT 2Sight VLT 3
FORKFox Performance 36 160 mmRockShox Pike RC 160 mmRockShox Yari RC 160 mm
REAR SHOCKFox Float DPX2 PerformanceRockShox Deluxe RTRockShox Deluxe RT
REAR DERAILLEURSRAM GX EagleSRAM NX EagleSRAM NX
CRANKSETShimano FC-E8000, 165 mm, 32tShimano FC-E8000, 165 mm, 32tSamox ET-38B, 165 mm, 32t
BRAKESRAM Code RSRAM Guide TSRAM Guide T
RIMSDT Swiss H1700 Spline 30WTB ST i29 TCS 2.0WTB ST i29 TCS 2.0
HUBSDT Swiss H1700 Spline 30Novatec D791SBNovatec D791SB
TIRESMaxxis Minion DHF / Maxxis Minion DHRIIMaxxis Minion DHF / Maxxis Minion DHRIIMaxxis Minion DHF / Maxxis Minion DHRII
MOTORShimano Steps E8000 Shimano Steps E8000 Shimano Steps E7000
BATTERYIn-Tube Battery 630 WhIn-Tube Battery 630 WhIn-Tube Battery 500 Wh
PRICE7.499 €5.999 €4.999 €

🔽 Inhalte ausklappen 🔽🔼 Inhalte einklappen 🔼

Video

Opinion @eMTB-News.de

The Norco Sight VLT looks like a top-class e-bike. The Canadian brand’s first e-bike is an impressive package, at least as far as looks go. The shapely carbon frame and fully integrated battery work supremely well.

We’re looking forward to our first test ride and will be reporting back soon.

What do you think of the new Norco Sight VLT?

Information and images: Norco Bicycles press release
